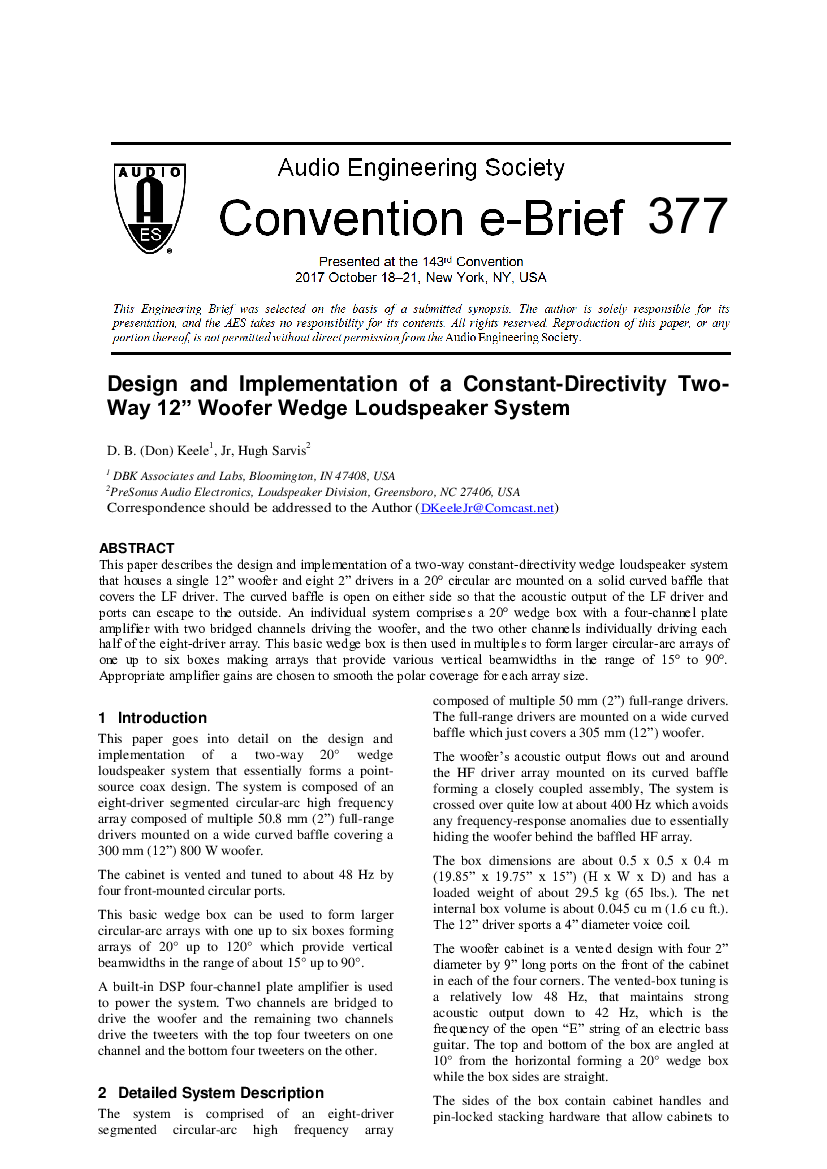

This paper describes the design and implementation of a two-way constant-directivity wedge loudspeaker system that houses a single 12” woofer and eight 2” drivers in a 20° circular arc mounted on a curved baffle that covers the LF driver. An individual system comprises a 20° wedge box with a four-channel plate amplifier with two bridged channels driving the woofer, and the two other channels individually driving each half of the eight-driver array. This basic wedge box is then used in multiples to form larger circular-arc arrays of one up to six boxes making arrays that provide various vertical beamwidths in the range of 15° to 90°. Appropriate amplifier gains are chosen to smooth the polar coverage for each array size.
(See document for exact affiliation information.)
