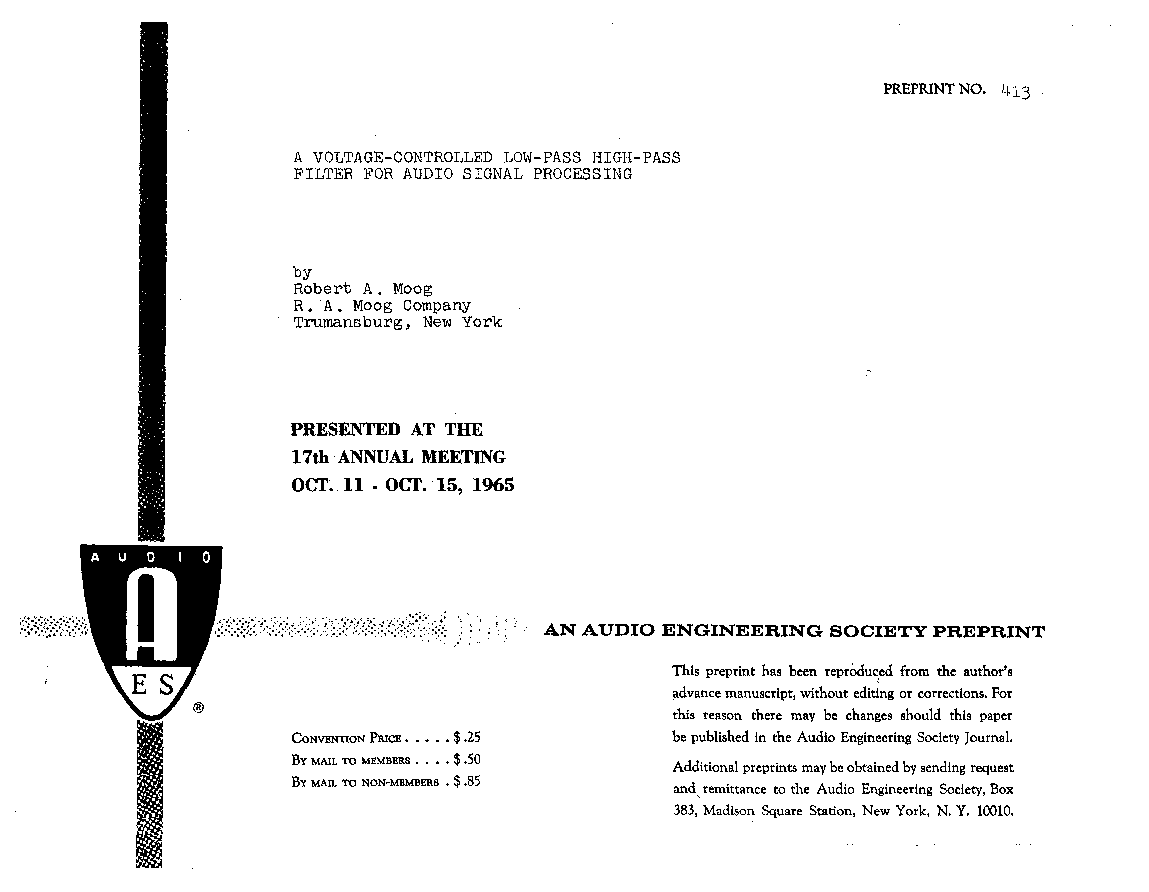

A voltage-controlled low-pass high-pass filter is described. The frequency cutoff slopes approach 24 db/octave. The relation between the control voltage and the cutoff frequency is exponential over a two-decade frequency range. Additional networks couple the low-pass and high-pass sections for band pass or band reject operation.
(See document for exact affiliation information.)
