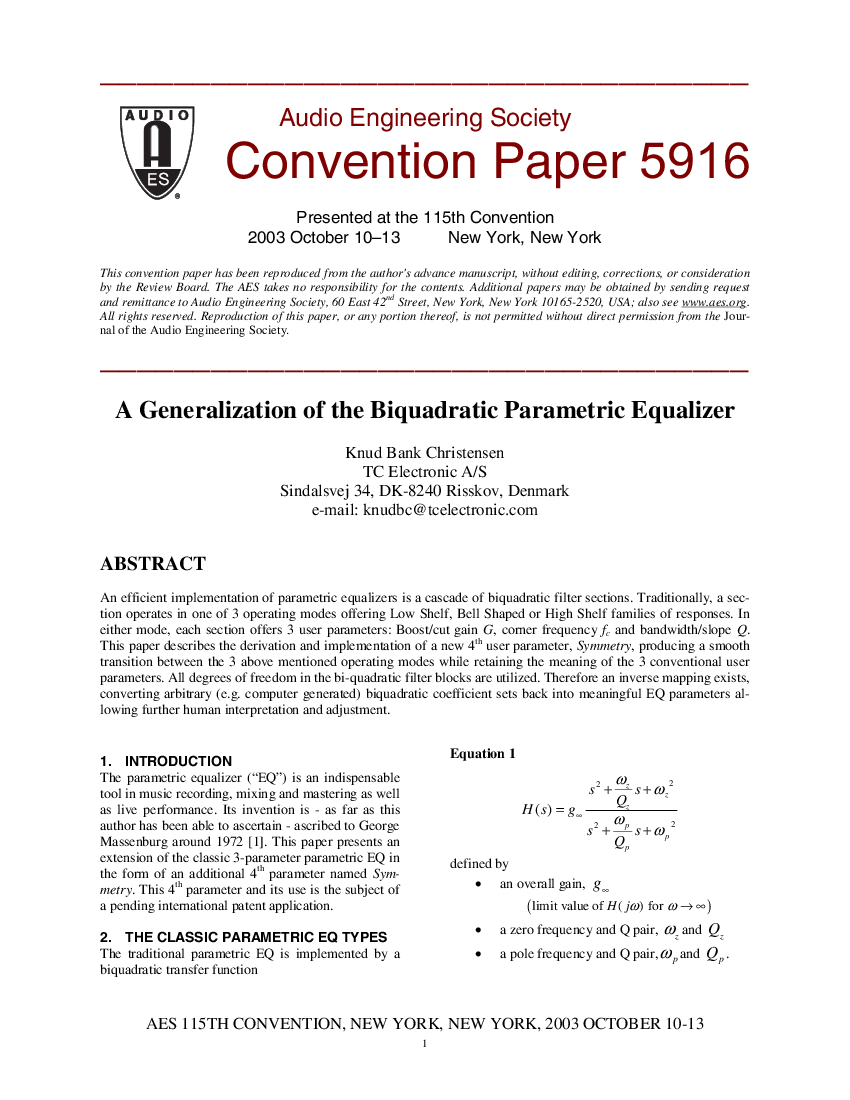

An efficient implementation of parametric equalizers is a cascade of biquadratic filter sections. Traditionally, a section operates in one of 3 operating modes offering Low Shelf, Bell Shaped or High Shelf families of responses. In either mode, each section offers 3 user parameters: Boost/cut gain G, corner frequency fc and bandwidth/slope Q. This paper describes the derivation and implementation of a new 4th user parameter, Symmetry, producing a smooth transition between the 3 above mentioned operating modes while retaining the meaning of the 3 conventional user parameters. All degrees of freedom in the bi-quadratic filter blocks are utilized. Therefore an inverse mapping exists, converting arbitrary (e.g. computer generated) biquadratic coefficient sets back into meaningful EQ parameters allowing further human interpretation and adjustment.
(See document for exact affiliation information.)
