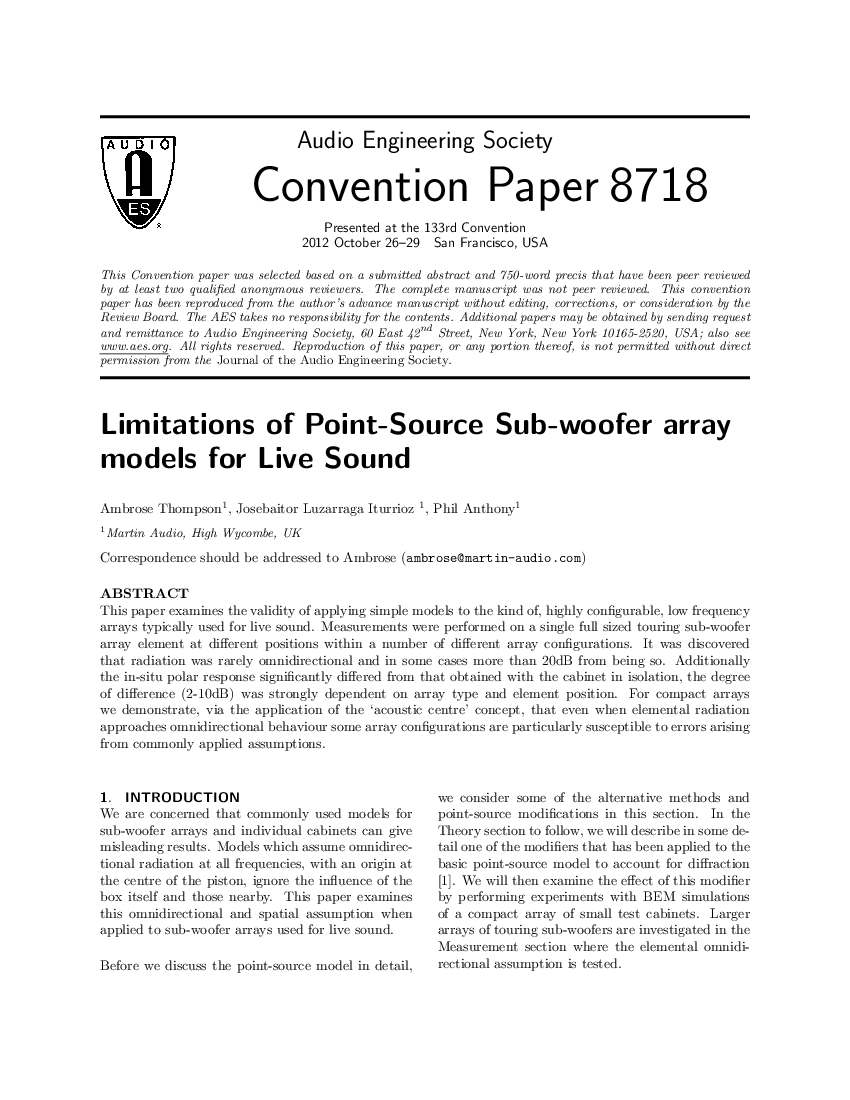

This paper examines the validity of applying simple models to the kind of highly configurable, low frequency arrays typically used for live sound. Measurements were performed on a single full-sized touring sub-woofer array element at different positions within a number of different array configurations. It was discovered that radiation was rarely omnidirectional and in some cases more than 20 dB from being so. Additionally, the in-situ polar response significantly differed from that obtained with the cabinet in isolation, the degree of difference (2–10 dB) was strongly dependent on array type and element position. For compact arrays we demonstrate, via the application of the “acoustic center” concept, that even when elemental radiation approaches omnidirectional behavior some array configurations are particularly susceptible to errors arising from commonly applied assumptions.
(See document for exact affiliation information.)
