Sound synthesis for fretted instruments, such as the guitar, has a long history because of numerous challenges; the interaction between the finger, string and fretboard under variable playing conditions is a delicate one, leading to many subtle features difficult to emulate using standard synthesis methods. A physical modeling approach thus becomes an attractive option. A vibrating string is subject to intermittent contact/recontact phenomena along the length of the fretboard, and the string is driven by a plucking interaction and stopped by a finger, the position of which and force applied by are gestural parameters. In this research, a finite-difference time-domain method is developed with a penalty potential allowing for a convenient model of distributed collision. Implementation details are discussed and simulation results and visualizations are presented illustrating a variety of typical playing gestures. Finally, given that such methods for highly nonlinear systems are prone to numerical instability, a brief description of an energy-balanced or Hamiltonian framework is provided, allowing for convenient numerical stability conditions.
Author (s): Bilbao, Stefan; Torin, Alberto
Affiliation:
Acoustics and Audio Group, University of Edinburgh, Edinburgh, UK
(See document for exact affiliation information.)
Publication Date:
2015-05-06
Import into BibTeX
Permalink: https://aes2.org/publications/elibrary-page/?id=17639
(425KB)
Click to purchase paper as a non-member or login as an AES member. If your company or school subscribes to the E-Library then switch to the institutional version. If you are not an AES member Join the AES. If you need to check your member status, login to the Member Portal.

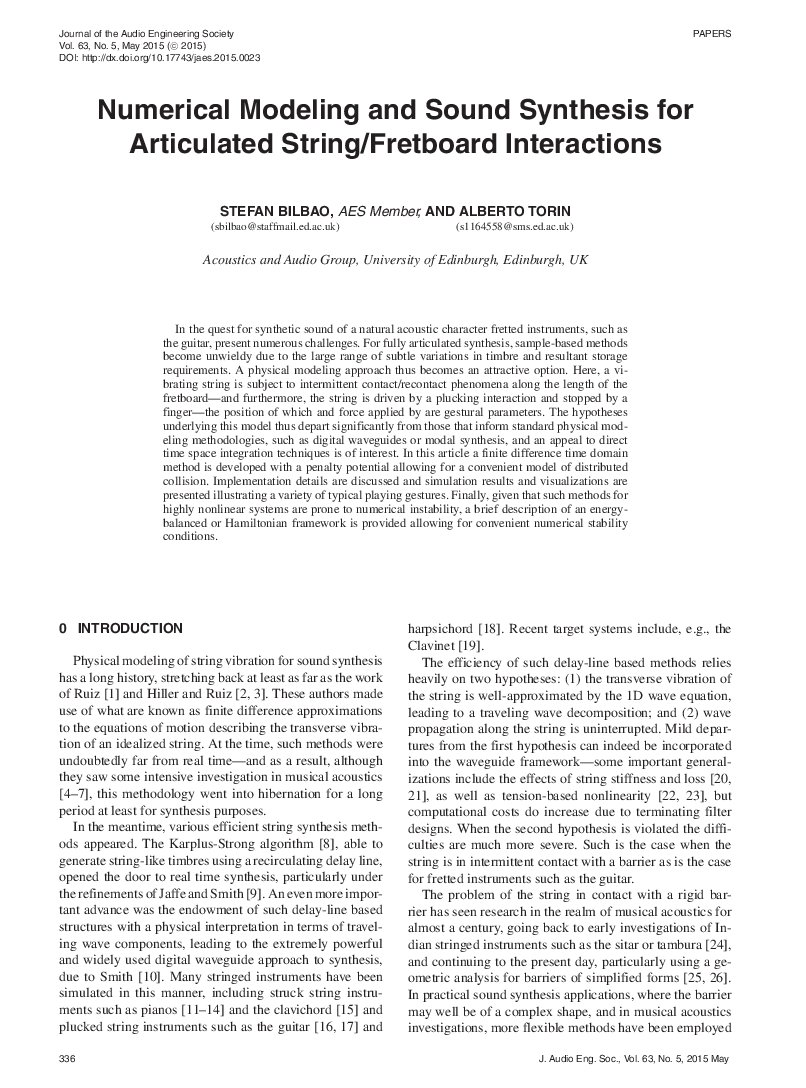

Bilbao, Stefan; Torin, Alberto; 2015; Numerical Modeling and Sound Synthesis for Articulated String/Fretboard Interactions [PDF]; Acoustics and Audio Group, University of Edinburgh, Edinburgh, UK; Paper ; Available from: https://aes2.org/publications/elibrary-page/?id=17639
Bilbao, Stefan; Torin, Alberto; Numerical Modeling and Sound Synthesis for Articulated String/Fretboard Interactions [PDF]; Acoustics and Audio Group, University of Edinburgh, Edinburgh, UK; Paper ; 2015 Available: https://aes2.org/publications/elibrary-page/?id=17639
