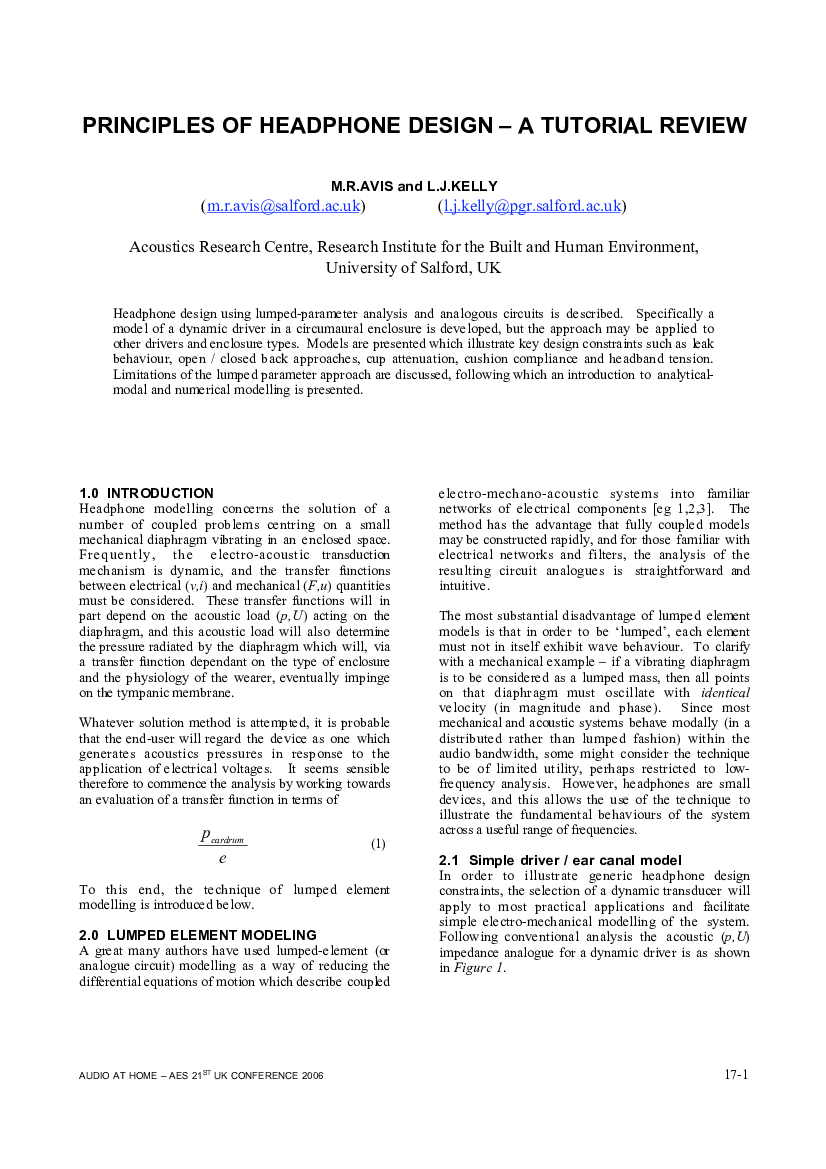

Headphone design using lumped-parameter analysis and analogous circuits is described. Specifically a model of a dynamic driver in a circumaural enclosure is developed, but the approach may be applied to other drivers and enclosure types. Models are presented which illustrate key design constraints such as leak behavior, open / closed back approaches, cup attenuation, cushion compliance and headband tension. Limitations of the lumped parameter approach are discussed, following which an introduction to analyticalmodal and numerical modeling is presented.
(See document for exact affiliation information.)
